The Wärtsilä / SAM Electronics DEM 401 Digital Input Module (Part No. 271.130.432.G / Lyngsoe Marine Part No. 962.004.600) is a specialized interface and signal-conditioning unit engineered for marine automation, alarm monitoring, and engine control systems. Designed to operate within harsh shipboard environments, it accurately processes multi-channel digital input signals from vital machinery sensors, providing reliable data communication back to the central automation architecture.

📊 Product Datasheet Parameters

• 🏷️ Product Type & Model: DEM 401 Digital Input Module (Model C6115)

• 🔢 Manufacturer Part Numbers: SAM Electronics 271.130.432G / Lyngsoe Marine 962.004.600 (Cross-compatible with variant 271.130.424C)

• ⚙️ System Application: Marine Alarm, Monitoring, and Control Systems (AMS)

• ⚡ Operating Power Supply: +24 V DC nominal system rack power

• 🔌 Input Configuration: High-density digital switch/sensor input channels

• 📐 Physical Dimensions: Standard modular electronic rack card format profile

• ⚖️ Product Net Weight: Approximately 0.53 kg to 0.65 kg

• 🌍 Country of Origin: Germany / Denmark / Europe

• 🛡️ Enclosure Protection Class: IP20 rating, designed for secure installation inside enclosed marine control consoles or switchboard cabinets

• 🌡️ Operating Temperature Range: -10°C to +55°C marine environmental standard threshold

📖 Product Instructions for Use

• Power Isolation: Always ensure that all main electrical power and control rack supplies are completely turned off and locked out before inserting or removing the DEM 401 module to prevent electrical damage or bus communication errors.

• Electrostatic Precautions: Wear a grounded anti-static wrist strap when unpacking and handling the circuit board to protect sensitive internal microprocessors from electrostatic discharge.

• Module Insertion: Carefully align the edges of the module card with the designated guide slots inside the marine automation rack and push smoothly until the rear backplane connectors seat firmly.

• Signal Cabling: Connect field digital sensor lines and alarm contact loops to the corresponding terminal blocks strictly in accordance with the vessel’s electrical installation and loop schematics.

• System Startup & Testing: Restore system power to the rack and observe the front-panel diagnostic indicators to verify normal initialization, module health, and proper state transition of digital inputs.

❓ Common Questions & Answers (Q&A)

• Q: What is the primary role of the DEM 401 module?

  A: It functions as a digital input processing unit designed to gather, filter, and transmit discrete status signals from shipboard machinery and safety sensors to the automation network.

• Q: Are SAM Electronics and Lyngsoe Marine part numbers interchangeable?

  A: Yes, units bearing part number 271.130.432G (SAM Electronics) and 962.004.600 (Lyngsoe Marine) represent the exact same hardware component due to historical joint system engineering.

• Q: Does this module require configuration upon replacement?

  A: In standard direct replacement scenarios, the module operates according to the pre-configured rack parameters and hardware address scheme, requiring minimal standalone software setup.

🏆 Recommended Wärtsilä, SAM Electronics & Lyngsoe Marine Series & Models

1. SAM Electronics / Lyngsoe Marine SIM 401 Dual Serial Interface Module

2. SAM Electronics / Lyngsoe Marine MXM 401 Multiplexer Module

3. Lyngsoe Marine AEM 402 Analogue Input Module

4. STN Atlas / Lyngsoe Marine REM 401 Relay and Input Module

5. Lyngsoe Marine RM 401 Regulator Module

6. Wärtsilä / Lyngsoe Marine DataChief Alarm and Monitoring System cards

7. Norcontrol NA1120 Pickup System Card

8. ABB Advant Marine Controller Family

9. Siemens Sipart / Teleperm Marine Automation Modules

10. Phoenix Contact Industrial Interface and Terminal Blocks

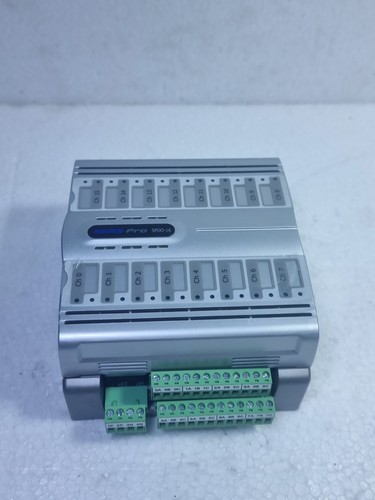

The Samsung SSAS-Pro SPDO-16 (Part Number: SPDO-16) is a specialized 16-channel digital output interface module engineered for marine automation, alarm monitoring systems (AMS), and integrated control & monitoring networks. Developed as part of the Samsung Heavy Industries SSAS-Pro modular platform architecture, this hardware module acts as a critical execution bridge. It translates high-level command signals from the central processing unit into physical switching actions to control external actuators, relays, solenoid valves, motor contactors, sirens, and indicator lamps across shipboard machinery spaces.

📊 Product Parameters & Datasheet

• 🏷️ Model & Part Number: SSAS-Pro SPDO-16 (Digital Output Module)

• 🏭 Manufacturer: Samsung Heavy Industries / Samsung Electronics (SSAS-Pro Platform)

• 💻 System Platform: SSAS-Pro Alarm and Monitoring System (AMS) & Integrated Automation System (IAS)

• 🔌 Output Channels: 16 independent digital output channels

• ⚡ Operating Voltage: Standard 24V DC marine rack power and control loops

• 🛡️ Isolation & Protection: Built-in optical/galvanic isolation to protect core system processors from field electrical noise and transient spikes

• 📏 Form Factor: Compact modular design for DIN-rail or dedicated system rack backplane mounting

• 🌍 Country of Origin: South Korea

• 🌡️ Operating Temperature Range: 0°C to +70°C (Industrial/Marine Grade)

📘 Product Instructions

1. Isolation: Ensure that the primary power feed to the system rack or local control unit (LCU) is completely switched off and isolated before handling installation or extraction.

2. Mounting: Carefully align and slide the SPDO-16 module into its designated slot on the system backplane or DIN-rail rack, ensuring pins and edge connectors engage smoothly without binding.

3. Wiring Termination: Connect field actuator lines, relay control feeds, and solenoid valve wiring securely to the corresponding terminal blocks, observing proper circuit loading limits and voltage ratings.

4. Verification: Verify output channel mappings, operating voltage thresholds, and network addresses against the vessel’s engineering schematic drawings prior to startup.

5. Initialization: Restore power to the rack and check the front-panel diagnostic LED indicators to confirm proper communication with the central processor and active control processing status.

❓ Frequently Asked Questions (Q&A)

Q: What is the primary function of the Samsung SPDO-16 module?

A: It functions as a 16-channel digital output module designed to translate central CPU instructions into physical control actions for operating relays, solenoid valves, motor contactors, and alarms.

Q: What system environments utilize this hardware?

A: It is natively deployed within the Samsung SSAS-Pro Alarm Monitoring System (AMS) and Integrated Control & Monitoring Systems (ICMS) found on commercial and industrial vessels.

Q: Which modules does it typically interface with in the rack?

A: It operates alongside other SSAS-Pro system components such as the SPU-16 CPU module, SPDI-24 digital input module, and SPAI-16/SPRI-16 analog modules within a shared remote I/O rack.

Q: What troubleshooting steps should be taken if an output channel fails to switch?

A: Power down the rack safely, inspect module seating in the backplane, check field terminal blocks for loose or oxidized wires, and review system diagnostic logs via the central operator workstation.

🔥 Recommended Alternative Samsung SSAS-Pro Series & Models

• Samsung SSAS-Pro SPDI-24 (24-Channel Digital Input Module)

• Samsung SSAS-Pro SPU-16 (Central Processing Unit Module)

• Samsung SSAS-Pro SPRI-16 (16-Channel RTD Analog Input Module)

• Lyngso Marine DataChief Alarm and Monitoring System

• SAM Electronics NACOS Platinum Navigation Control

• Kongsberg Maritime AutoChief Propulsion Control

• ABB System 800xA Marine Control Platform

• Emerson DeltaV I/O Subsystem

• Schneider Electric Modicon Quantum PLC Series

• Siemens SIMATIC S7 Industrial Automation System

The Bently Nevada 3300 Series Monitoring System (featuring reference code ZE820909) is an industry-standard machinery protection and condition monitoring platform designed to measure critical parameters such as radial vibration, axial position, and speed on rotating machinery. Built for continuous online operation, it helps prevent catastrophic failures in heavy industrial environments like turbines, compressors, and pumps. Here are ten core parameter specifications for this system configuration:

• 🏭 Manufacturer: Bently Nevada (Baker Hughes)

• 🏷️ Product Type: Machinery Protection & Monitoring System

• 📌 Series / Model: 3300 Series (Customized Configuration ZE820909)

• ⚡ Operating Power Supply: -17.5 Vdc to -26 Vdc (or standard AC/DC rack power options)

• 🔌 Signal Input Compatibility: Eddy current proximity probes, seismoprobes, and accelerometers

• 📊 Incremental Scale Factor: Typically 7.87 mV/µm (200 mV/mil) ±6.5% for standard proximity setups

• ⚖️ System Weight: Varies by rack size and module complement (approx. 5 kg to 15 kg for standard rack configurations)

• 🌍 Country of Origin: United States

• 📐 Mounting Type: Industrial rack-mounted chassis / panel integration

• ⚓ Core Application: Continuous vibration monitoring, machine protection, and automated emergency trip control

📖 Product Usage Instructions

• 🛠️ Power Isolation: Always disconnect and lock out the main power feeds to the 3300 rack before inserting, removing, or servicing any internal monitor cards or power supplies.

• 🔌 Proper Installation: Ensure that individual monitor modules and system power supplies are firmly slid and locked into their designated rack slots to maintain solid backplane communication.

• 🔧 Configuration & Calibration: Verify that channel scaling, alarm setpoints, and time delays match your machinery specifications prior to putting the protection system into service.

• 🧪 System Testing: Perform routine input simulation checks and relay trip verification tests using signal generators to ensure alarm and shutdown loops function correctly.

❓ Frequently Asked Questions (Q&A)

• Q: What is the primary function of the Bently Nevada 3300 Monitoring System?

  A: It provides continuous, online surveillance of critical rotating equipment parameters, issuing early warnings or automatic shutdown triggers when abnormal mechanical vibration or position changes occur.

• Q: Can components from the 3300 system be swapped without recalibration?

  A: Yes, standard 3300 and 3300 XL transducer components (probes, extension cables, and proximitor sensors) feature complete interchangeability without requiring bench recalibration.

• Q: What should I check if a monitor channel shows a “Not OK” status?

  A: Inspect the field wiring, check for loose connector clicks, verify supply voltages, and confirm that the probe tip gap voltage falls within the designated linear operational range.

🔍 Recommended Alternative Models & Series

To support your machinery protection upgrades, maintenance routines, and spare parts management, here are ten alternative systems and series from Bently Nevada:

1. Bently Nevada 3500 Series Machinery Protection System

2. Bently Nevada 3300 XL 8mm Proximity Transducer System

3. Bently Nevada 3300 NSv Proximity Transducer System

4. Bently Nevada TK3 Proximity System Test Kit

5. Bently Nevada ADRE 408 Portable Data Acquisition System

6. Bently Nevada Orbit 60 Machinery Protection System

7. Bently Nevada Ranger Pro Wireless Vibration Sensor

8. Bently Nevada Trendmaster Pro Online Monitoring System

9. Bently Nevada 1900/65 General Purpose Machinery Monitor

10. Bently Nevada 3300 25mm Seismic Monitoring Transducer System

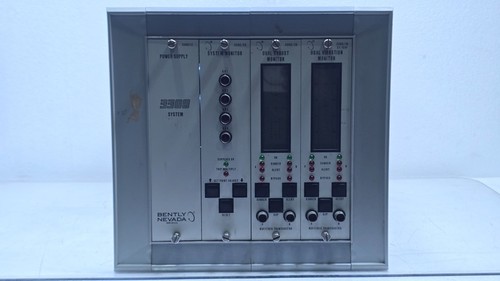

The Bently Nevada 3300 Series System Monitor (Serial / Unit Identifier: 1F821952) is a cornerstone component designed for the industry-proven 3300 Machinery Protection System. Installed in the second slot of the instrument rack, this dedicated master module manages vital functions common to all monitors, including system-wide alarm setpoint adjustments, power distribution for Keyphasor signals, alarm acknowledgement routines, and comprehensive status supervision. Engineered for continuous online protection of critical rotating machinery such as turbines, compressors, and large pumps, it delivers exceptional reliability and safeguards high-value industrial assets against catastrophic downtime.、

📊 Product Datasheet & Technical Parameters

⚙️ Product Usage Instructions

🔌 Rack Installation: Position and slide the module securely into slot two (the designated position immediately to the right of the power supply) within the 3300 instrument rack backplane enclosure.

🔗 Signal and Comms Wiring: Connect rear-panel terminal blocks for remote reset, rack inhibit, and trip multiply functions, and link the RS-232/422 communication ports to host computers or digital control networks.

⚡ System Power Verification: Confirm that all rack backplane voltages and internal power supply LED indicators show green status (“Supplies OK”) prior to initiating active monitoring operations.

💻 Configuration and Setpoint Tuning: Utilize the front-panel membrane switches or host software interface to adjust alarm thresholds, verify Keyphasor input synchronization, and perform routine system diagnostics.

❓ Frequently Asked Questions (Q&A)

❓ Q1: What is the main operational purpose of the 3300/03 System Monitor module?

✅ A1: It acts as the central coordinator for the entire 3300 rack, handling common tasks like alarm setpoint configuration, Keyphasor distribution, rack-wide status monitoring, and data communication outputs.

❓ Q2: What does serial identifier 1F821952 designate on this unit?

✅ A2: The sequence 1F821952 serves as the unique factory serial number for tracking production batch details, hardware revisions, and calibration history for this specific module.

❓ Q3: Can this module interface directly with external software or plant control systems?

✅ A3: Yes, through optional Serial Data Interface (SDI) or Dynamic Data Interface (DDI) configurations, it can stream transducer metrics and rack alarms directly to distributed control systems (DCS) or machinery management software.

🔍 Recommended Alternative Series and Models

• Bently Nevada 3500/22M Transient Data Interface (TDI) Module

• Bently Nevada 3500/15 AC/DC Power Supply Module

• Bently Nevada 3500/42M Proximitor Monitor Module

• Bently Nevada 3500/93 System Display Module

• Bently Nevada 3300 XL 8 mm Proximity Transducer System

• Bently Nevada 1900/65A Equipment Monitor

• Bently Nevada Orbit 60 Protection Processing Module (PPM)

• Bently Nevada ADRE 408 Portable Diagnostic Instrument

• Bently Nevada 3500/32M 4-Channel Relay Module

• Bently Nevada 3300/25 Keyphasor Module

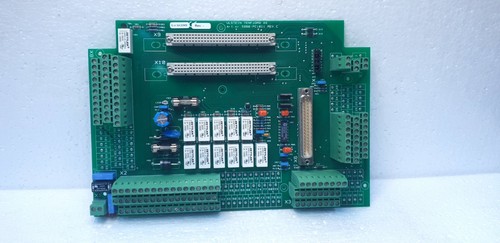

The Ulstein Tenfjord 5880-PC1011 Printed Circuit Board Card (Revision C, 94V-0 rated) is a specialized electronic control and interface module manufactured by Ulstein Tenfjord AS (associated with Rolls-Royce Marine AS). Engineered specifically for marine environments, it serves as a critical component within heavy-duty electro-hydraulic steering gear systems, control panels, and motion automation networks, ensuring precise feedback processing and reliable vessel maneuverability.

📊 Product Datasheet Parameters

• 🏷️ Product Type & Model: 5880-PC1011 Printed Circuit Board Card

• 🔢 Manufacturer / Brand: Ulstein Tenfjord AS / Rolls-Royce Marine AS

• ⚙️ Hardware Revision: Revision C (UL 94V-0 flame-retardant PCB substrate compliance)

• 🎛️ Primary Application: Marine electro-hydraulic steering gear control and actuator regulation

• ⚡ Operating Power Supply: Standard marine system rack power (+24 V DC nominal)

• 📐 Physical Form Factor: Standard modular electronic plug-in circuit board profile

• ⚖️ Product Net Weight: Approximately 0.85 kg to 1.25 kg

• 🌍 Country of Origin: Norway

• 🛡️ Enclosure Protection Class: IP20 rating (designed for secure installation inside enclosed bridge or steering gear control cabinets)

• 🌡️ Operating Temperature Range: -10°C to +55°C marine environmental standard threshold

📖 Product Instructions for Use

• Power Isolation: Always ensure that all main electrical power and control supplies to the steering gear control panel are completely turned off and locked out before handling or replacing the PCB card.

• Electrostatic Precautions: Wear a properly grounded anti-static wrist strap when unpacking and installing the circuit board to protect sensitive microprocessors from electrostatic discharge.

• Card Insertion: Carefully align the edges of the 5880-PC1011 card with the designated rack guide slots and push smoothly until the rear backplane connectors seat firmly.

• Cabling & Connections: Inspect and securely reconnect any interface plugs, ribbon cables, or terminal blocks according to the vessel’s specific steering system schematics.

• System Testing: Restore power to the control rack and verify proper module initialization, indicator light status, and steering loop response before releasing the vessel for navigation.

❓ Common Questions & Answers (Q&A)

• Q: What is the primary role of the Ulstein Tenfjord 5880-PC1011 board?

  A: It acts as a core electronic controller and signal processing card designed to manage control loops and feedback signals within Tenfjord marine steering gear systems.

• Q: What does the “94V-0” designation mean on the board label?

  A: It signifies that the printed circuit board laminate meets UL 94V-0 standards for flammability, meaning it self-extinguishes quickly in the event of an electrical fire hazard.

• Q: Can Revision C replace older hardware revisions like Revision B?

  A: Yes, Revision C maintains form, fit, and function compatibility with older card variants in designated Tenfjord control racks, though system jumper or configuration settings should always be checked against the legacy unit.

🏆 Recommended Ulstein Tenfjord & Marine Series & Models

1. Ulstein Tenfjord Electro-Hydraulic Steering Gear Systems (Series M/SR)

2. Ulstein Tenfjord 5801-DC Series Power Supply Cards

3. Rolls-Royce Marine Tenfjord Rudder Control Units

4. Kongsberg / Tenfjord Marine Automation Interface Modules

5. Sperry Marine / Tenfjord Autopilot Interface Cards

6. SAM Electronics Marine Control Modules

7. Lyngsoe Marine Alarm and Monitoring Cards

8. ABB Advant Marine Controller Family

9. Phoenix Contact Industrial Interface Modules

10. Danfoss Industrial Pressure and Feedback Transmitters

The Samsung SSAS-Pro SPDI-24 (Part Number: SPDI-24) is a specialized 24-channel digital and pulse input interface module engineered for marine automation, alarm monitoring systems (AMS), and integrated control & monitoring systems (ICMS). Developed for the Samsung Heavy Industries SSAS-Pro platform architecture, this hardware module acts as a critical signal-processing bridge. It reliably collects digital input signals, contact closures, and pulse inputs from field sensors across engine rooms and auxiliary machinery spaces, routing them safely to centralized control workstations.

📊 Product Parameters & Datasheet

• 🏷️ Model & Part Number: SSAS-Pro SPDI-24 (Digital Input Module)

• 🏭 Manufacturer: Samsung Heavy Industries / Samsung Electronics

• 💻 System Platform: SSAS-Pro Alarm and Monitoring System (AMS)

• 🔌 Input Channels: 24 channels for digital and pulse inputs (optically isolated)

• ⚡ Operating Voltage: 24V DC standard rack/module power supply

• 🛡️ Safety & Protection Features: Built-in optical isolation against electrical noise and surges, plus integrated wire break detection to flag sensor loop faults instantly.

• 🌍 Country of Origin: South Korea

• 🌡️ Operating Temperature Range: 0°C to +70°C (Storage: -30°C to +80°C)

• 💧 Humidity Tolerance: Up to 95% non-condensing

📘 Product Instructions

1. Isolation: Ensure that the primary power feed to the system rack or local control unit (LCU) is completely switched off and isolated before handling installation or extraction.

2. Mounting: Carefully align and slide the SPDI-24 module into its designated slot on the DIN-rail or system backplane, ensuring pins and edge connectors engage smoothly.

3. Wiring Termination: Connect field sensor lines and digital input wiring securely to the corresponding terminal blocks, observing proper loop configuration to utilize the built-in wire-break detection features.

4. Verification: Verify input voltage levels, channel mapping, and network addressing against the vessel’s automation schematic drawings prior to startup.

5. Initialization: Restore power to the rack and check the front-panel diagnostic indicators to verify proper module communication with the CPU card and active signal processing.

❓ Frequently Asked Questions (Q&A)

Q: What is the primary function of the Samsung SPDI-24 module?

A: It functions as a 24-channel digital input interface module designed to collect switch states, contact closures, and pulse signals from industrial or marine machinery for centralized alarm monitoring.

Q: What system environments utilize this hardware?

A: It is natively deployed within the Samsung SSAS-Pro Alarm Monitoring System (AMS) and Integrated Control & Monitoring Systems (ICMS) found on commercial vessels.

Q: Does the module protect against sensor loop failures?

A: Yes, it features integrated wire break detection capabilities to alert operators immediately if communication or wiring to a field sensor is interrupted.

Q: What maintenance steps are recommended if an input channel fails?

A: Power down the rack safely, inspect module seating in the backplane, check field terminal blocks for loose wires or corrosion, and review system diagnostic logs via the operator workstation.

🔥 Recommended Alternative Samsung SSAS-Pro Series & Modules

• Samsung SSAS-Pro SPDI-16 (16-Channel Digital Input Module)

• Samsung SSAS-Pro SPIRU-16 (Mixed Digital Input/Output Module)

• Samsung SSAS-Pro Analog Input Modules (Pt100 RTD Input Support)

• Samsung SSAS-Pro Central Processing Unit (CPU) Card

• Lyngso Marine DataChief Alarm and Monitoring System

• SAM Electronics NACOS Platinum Navigation Control

• Kongsberg Maritime AutoChief Propulsion Control

• ABB System 800xA Marine Control Platform

• Emerson DeltaV I/O Subsystem

• Schneider Electric Modicon Quantum PLC Series

The Lyngso Marine DPS 2100 (Part Number 962005700) is a critical engine safety system unit engineered to provide independent shutdown, alarm handling, and overspeed protection for marine propulsion diesel engines. Designed for high reliability in harsh maritime environments, it ensures fast fault detection and safe automated responses. Here are ten essential parameter specifications for this unit:

• 🏭 Manufacturer: Lyngso Marine

• 🏷️ Product Type: Engine Safety System / Safety Processing Module

• 📌 Model Designation: DPS 2100

• 🔢 Part Number (MPN): 962005700

• 🗂️ Internal Code: W 9728

• ⚡ Operating Voltage: +24V DC standard marine control architecture

• 🔌 Power & Relay Rating: 0.5A/F fuse and safety relay configuration

• ⚖️ Item Weight: Approximately 1.320 kg

• 🌍 Country of Origin: Denmark

• ⚓ Core Application: Independent marine diesel engine emergency shutdown and overspeed monitoring

📖 Product Usage Instructions

• 🛠️ Power Disconnection: Always ensure that the main power supply and safety loops are fully isolated and switched off before installing or removing the DPS 2100 module to prevent accidental system trips.

• 🔌 Secure Installation: Align the module carefully into the designated safety rack slot, making sure all backplane connectors are firmly seated to withstand onboard vibration.

• 🔧 Configuration Verification: Check all internal jumper settings, fuse ratings, and wiring terminals against the specific engine safety schematic prior to system startup.

• 🧪 Operational Testing: Perform comprehensive functional simulation and safety trip tests from the bridge or engine control room to verify correct shutdown logic response.

❓ Frequently Asked Questions (Q&A)

• Q: What is the primary purpose of the Lyngso Marine DPS 2100 unit?

  A: It serves as an independent safety system dedicated to monitoring engine overspeed conditions and executing critical emergency shutdowns.

• Q: Is part number 962005700 a direct replacement component?

  A: Yes, it is designed as a direct plug-and-play replacement card for existing Lyngso Marine DPS 2100 safety racks on commercial vessels.

• Q: What steps should be taken if a fuse failure occurs on the module?

  A: Inspect the circuit for external shorts, verify that the replacement fuse matches the exact 0.5A/F rating, and clear any underlying faults before re-energizing.

🔍 Recommended Alternative Models & Series

To support your marine automation maintenance and spare parts sourcing, here are ten alternative systems and series from Lyngso Marine:

1. Lyngso Marine DMS 2100 Diesel Manoeuvring System

2. Lyngso Marine EGS 2000 Electronic Governor System

3. Lyngso Marine ACS 2000 Alarm and Control System

4. Lyngso Marine DPU 2100 Data Processing Unit

5. Lyngso Marine GOS Graphical Operator Station

6. Lyngso Marine VCS 2100 Valve Control System

7. Lyngso Marine TLG 2100 Tank Level Gauging System

8. Lyngso Marine Bridge Wing Control Unit

9. Lyngso Marine Shaft Generator (SG) Control Module

10. Lyngso Marine Emergency Telegraph System

The Samsung SSAS-Pro SPAI-16 is a high-precision, marine-grade 16-channel analog input module specifically engineered for the Samsung SSAS-Pro ship safety and alarm monitoring system. Serving as a core data acquisition unit in maritime automation architectures, it excels at collecting, filtering, converting, and transmitting critical analog sensor measurements such as temperature, pressure, liquid level, and flow parameters from across the vessel. Built with robust electrical isolation and heavy-duty environmental resistance, it ensures stable and accurate operational supervision under harsh offshore conditions.

📊 Product Datasheet & Technical Parameters

⚙️ Product Usage Instructions

🔌 Secure Rack Insertion: Carefully align and slide the SPAI-16 module into its designated slot within the main Samsung SSAS-Pro system rack, ensuring the backplane connector is fully seated.

🔗 Signal Wiring Connections: Connect field sensor lines securely to the corresponding channel terminal blocks, utilizing proper shielded cabling to protect low-level analog inputs from electromagnetic noise.

⚡ Voltage Verification: Confirm that the incoming 24V DC power supply lines and system bus voltages are completely stable and within allowable tolerances before applying main power.

💻 System Configuration: Initialize the module through the central automation workstation or monitoring software interface to verify channel synchronization and calibrate measurement scaling.

❓ Frequently Asked Questions (Q&A)

❓ Q1: What is the primary function of the Samsung SPAI-16 module?

✅ A1: The SPAI-16 acts as a 16-channel analog input acquisition card designed to gather critical process metrics like pressure and temperature for the Samsung SSAS-Pro alarm system.

❓ Q2: Does the module protect against electrical interference between channels?

✅ A2: Yes, each input channel features an independent isolated design to eliminate signal crosstalk and maintain high conversion accuracy.

❓ Q3: What type of power fluctuations can the unit withstand?

✅ A3: It operates on a standard marine 24V DC supply with a wide voltage tolerance range of plus or minus 30 percent to handle unstable shipboard power variations.

🔍 Recommended Alternative Series and Models

• Samsung SSAS-Pro SPDI-16 (Digital Input Module)

• Samsung SSAS-Pro SPRI-16 (Relay Output Module)

• Samsung SSAS-Pro RSPC-X32 (Central Processing Card)

• Samsung Integrated Alarm System (IAS) Processor Unit

• Samsung Voyage Data Recorder (VDR) Interface Card

• Samsung Marine Engine Monitoring Terminal Unit

• Samsung Tank Level Gauging Control Module

• Samsung Machinery Safety Interlock Card

• Samsung Serial Communication Gateway Board

• Samsung Power Distribution Monitoring Module

The Foxboro FCP280 (Part Number: RH924YA) is a high-performance, distributed Field Control Processor designed as a core component of the EcoStruxure Foxboro Distributed Control System (DCS). Engineered for complex industrial automation environments, the FCP280 executes regulatory, logic, timing, and sequential control algorithms while simultaneously handling high-speed data acquisition and alarm detection. Featuring an optional patented fault-tolerant architecture, rugged environmental resilience, and direct connectivity to Foxboro Fieldbus Modules (FBMs), it delivers exceptional reliability and precision for mission-critical refining, petrochemical, power generation, and water treatment operations.

📊 Product Parameters & Datasheet

• 🏷️ Model & Part Number: FCP280 / RH924YA

• 🏭 Manufacturer: Foxboro (Schneider Electric)

• 💻 Processor Type: ARM System-on-Chip (SoC) 32-bit architecture

• 💾 System Memory: 128 MB SDRAM, 128 MB Flash Memory (with ECC single-bit error detection and correction)

• 🔌 Process I/O Communications: HDLC Fieldbus interface (2 Mbps for 200 Series FBMs, 268 Kbps for 100 Series FBMs)

• 📊 I/O Capacity: Up to 128 Fieldbus Modules (FBMs) per processor via expanded fieldbus chains

• 🌐 Network Interface: Dual 100 Mbps Ethernet ports (fiber optic or copper via baseplate network adapters) for connection to The Mesh control network

• ⚡ Operating Voltage: 24 V DC typical (supports redundant power configurations)

• 🛡️ Environmental Rating: ISA Class G3 harsh environment certification

• 🌡️ Operating Temperature Range: 0°C to +60°C (32°F to 140°F)

• ⚖️ Net Weight: Approx. 0.8 kg (1.78 lbs) for a single standard module

📘 Product Instructions

1. Isolation: Ensure that all primary power sources and redundant feed lines to the control processor baseplate are completely switched off and locked out before handling installation or extraction.

2. Mounting: Carefully align and slide the FCP280 module into its designated slot on the system baseplate, ensuring the backplane connectors and locking mechanisms engage smoothly without bending pins.

3. Network & Fieldbus Connection: Connect the 100 Mbps Ethernet communication cables (fiber or copper) to the baseplate network adapters and secure the HDLC fieldbus lines to the appropriate PIO ports.

4. Verification: Check all redundant power connections, grounding paths, and hardware module seating against system engineering specifications prior to startup.

5. Initialization: Energize the system and monitor the integrated Liquid Crystal Display (LCD) screen and front-panel status LEDs to confirm proper boot sequence, redundancy synchronization, and active control status.

❓ Frequently Asked Questions (Q&A)

Q: What is the primary function of the Foxboro FCP280 RH924YA?

A: It functions as a distributed field control processor that executes regulatory, logic, timing, and sequential control algorithms while managing real-time data acquisition and alarming.

Q: Does the FCP280 support fault-tolerant configurations?

A: Yes, it supports an optional fault-tolerant pairing using dual control modules to achieve maximum availability and non-stop operation, including support for online image upgrades (OLUG).

Q: What types of Fieldbus Modules (FBMs) can connect directly to the FCP280?

A: It connects directly to 200 Series FBMs at 2 Mbps and can support mixed or dedicated configurations with 100 Series FBMs without requiring external Fieldbus Communication Modules.

Q: What troubleshooting steps should be taken if a communication or module error occurs?

A: Power down the slot safely, inspect module backplane pins for oxidation or dust, verify that network cables and redundant power feeds are securely seated, and review system diagnostic logs via the engineering station.

🔥 Recommended Alternative Foxboro & Schneider Electric Series & Models

• Foxboro FCP270 Field Control Processor Series

• Foxboro FCP260 Control Processor Platform

• Foxboro 200 Series Fieldbus Modules (FBMs)

• EcoStruxure Foxboro DCS System Architecture

• Foxboro Evo Process Control Suite

• Triconex Tricon Safety Instrumented System

• Schneider Modicon M580 ePAC Controller Series

• Honeywell Experion C350 Controller Platform

• ABB System 800xA Controller Unit
